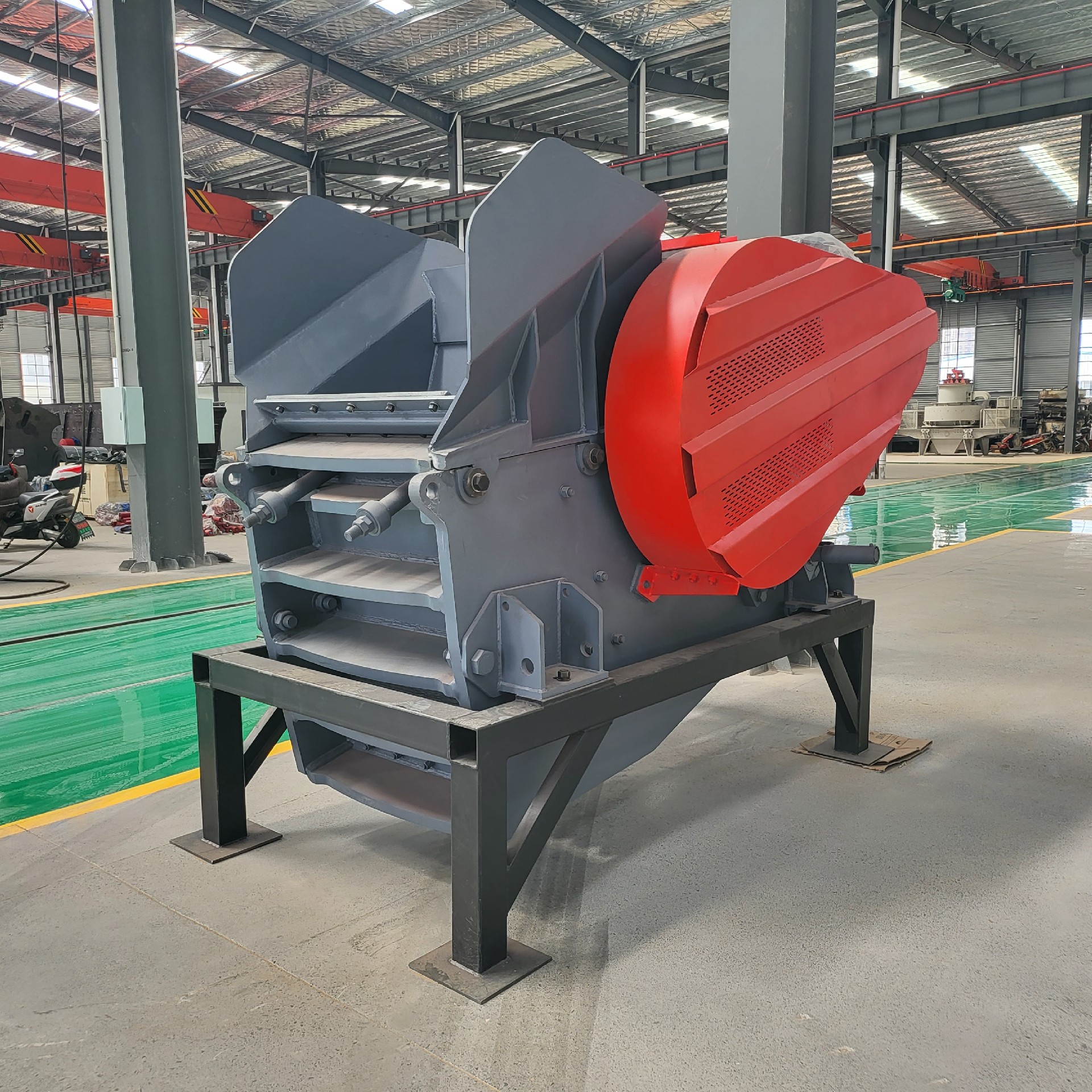

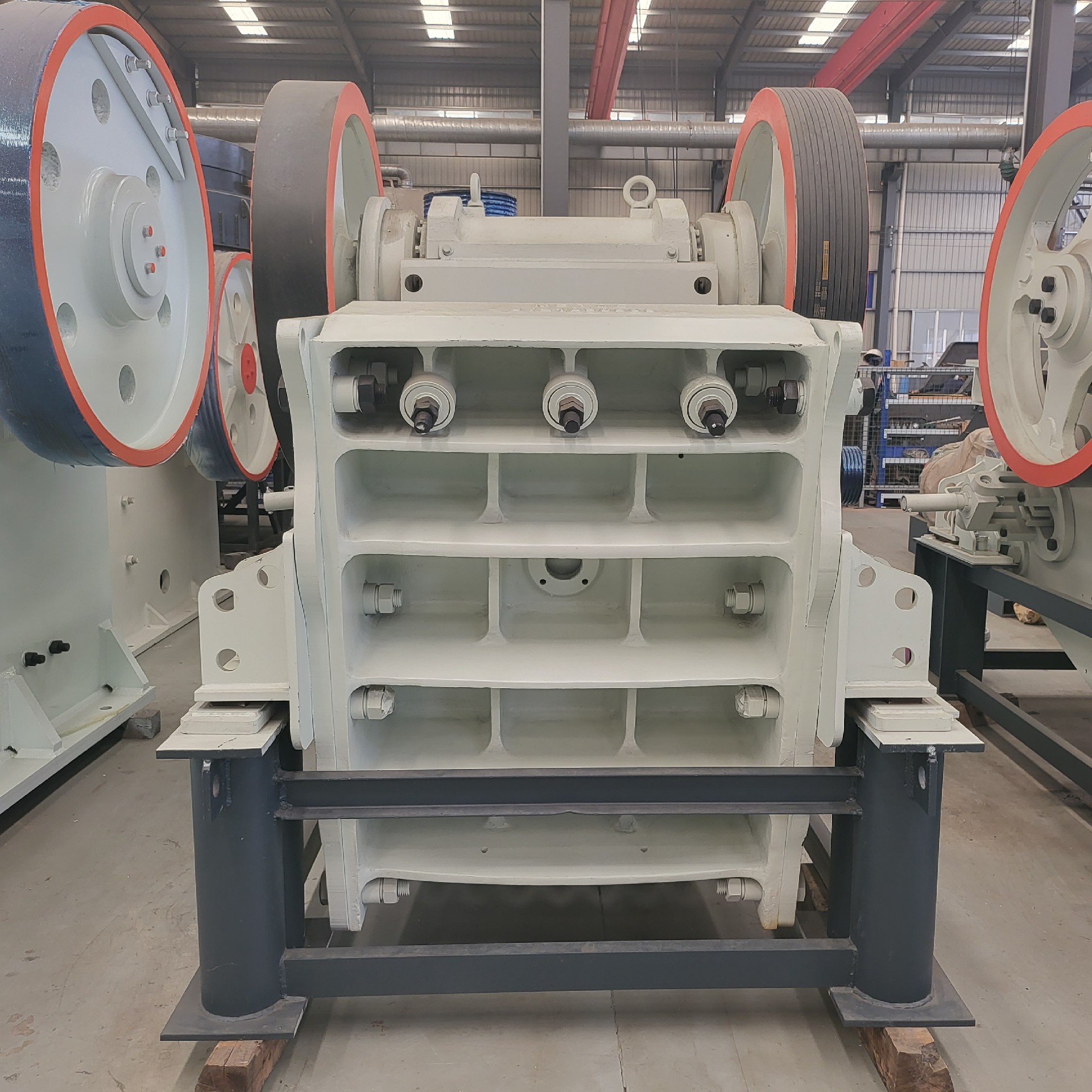

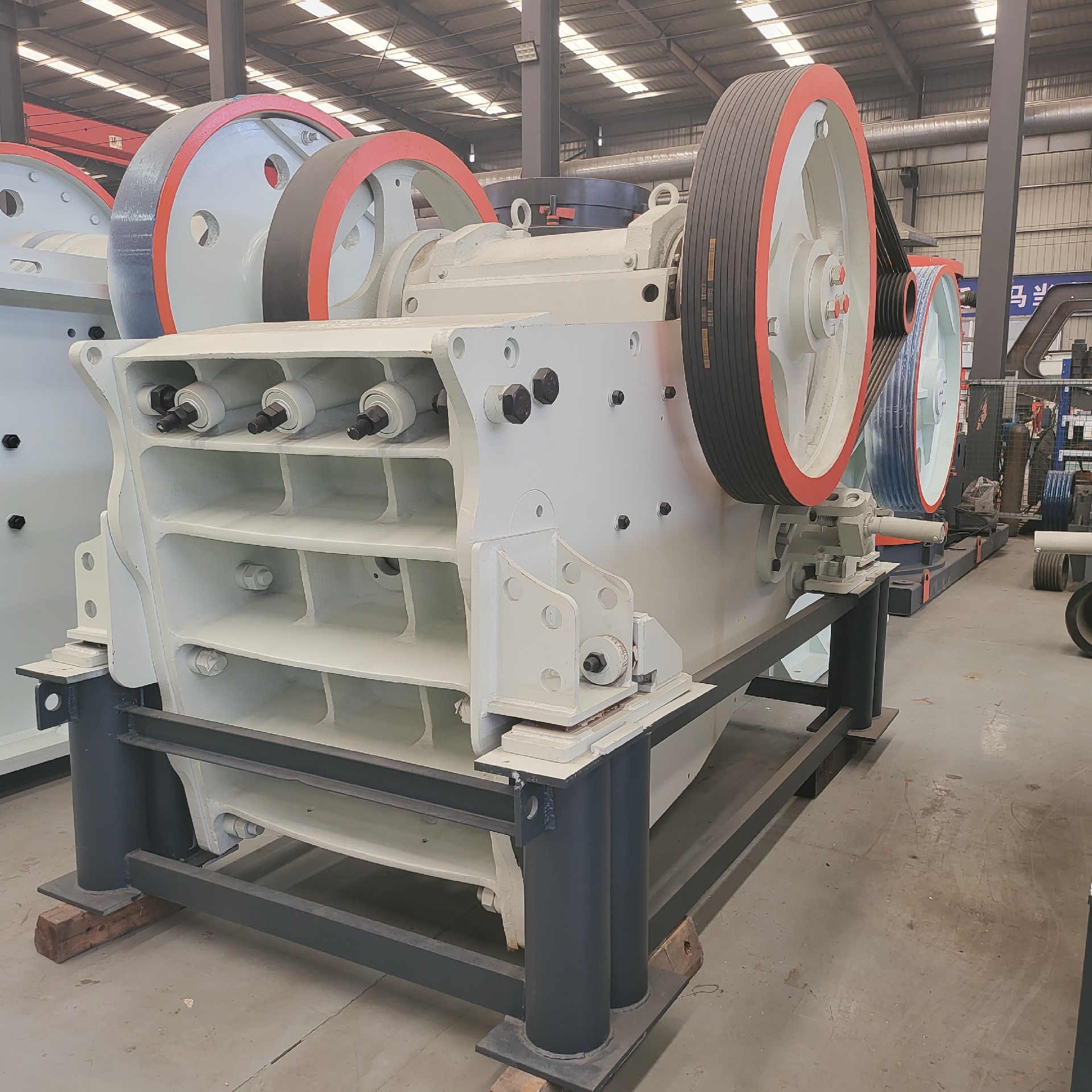

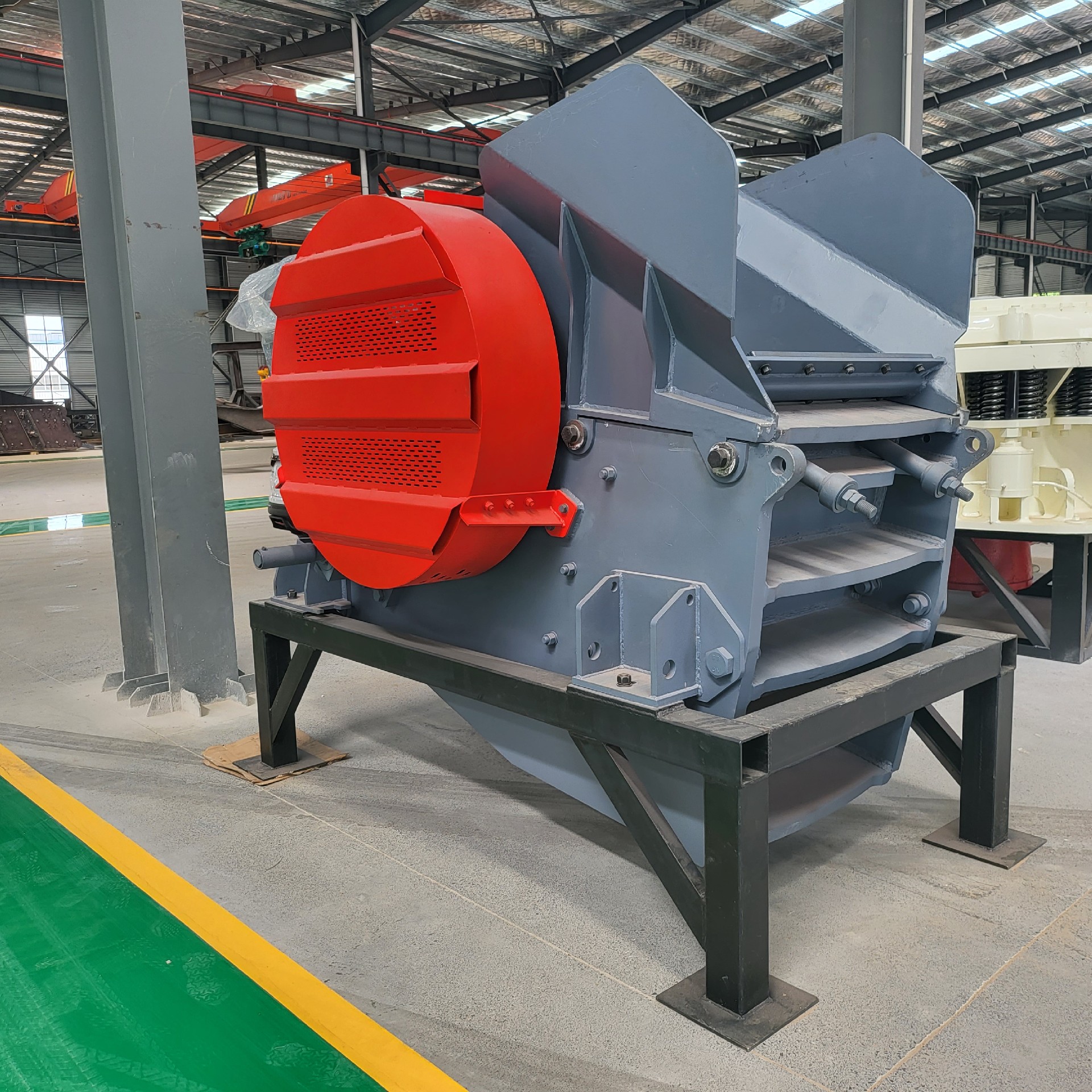

European Jaw Crusher

The European-style jaw crusher is a new generation of jaw crusher developed by our company by introducing advanced foreign technology. It uses better raw materials from home and abroad and key components provided by high-level manufacturers.

　　Feed Size:250-1500mm
　　Power:22-220KW
　　Production Capacity:15-800t/h
　　Applicable Materials:River pebbles, cobbles, quartzite, limestone, basalt, granite, marble, iron ore, construction waste, etc.

WhatsApp Email inquiry

Product Description Product Advantages Working Principle Product Features

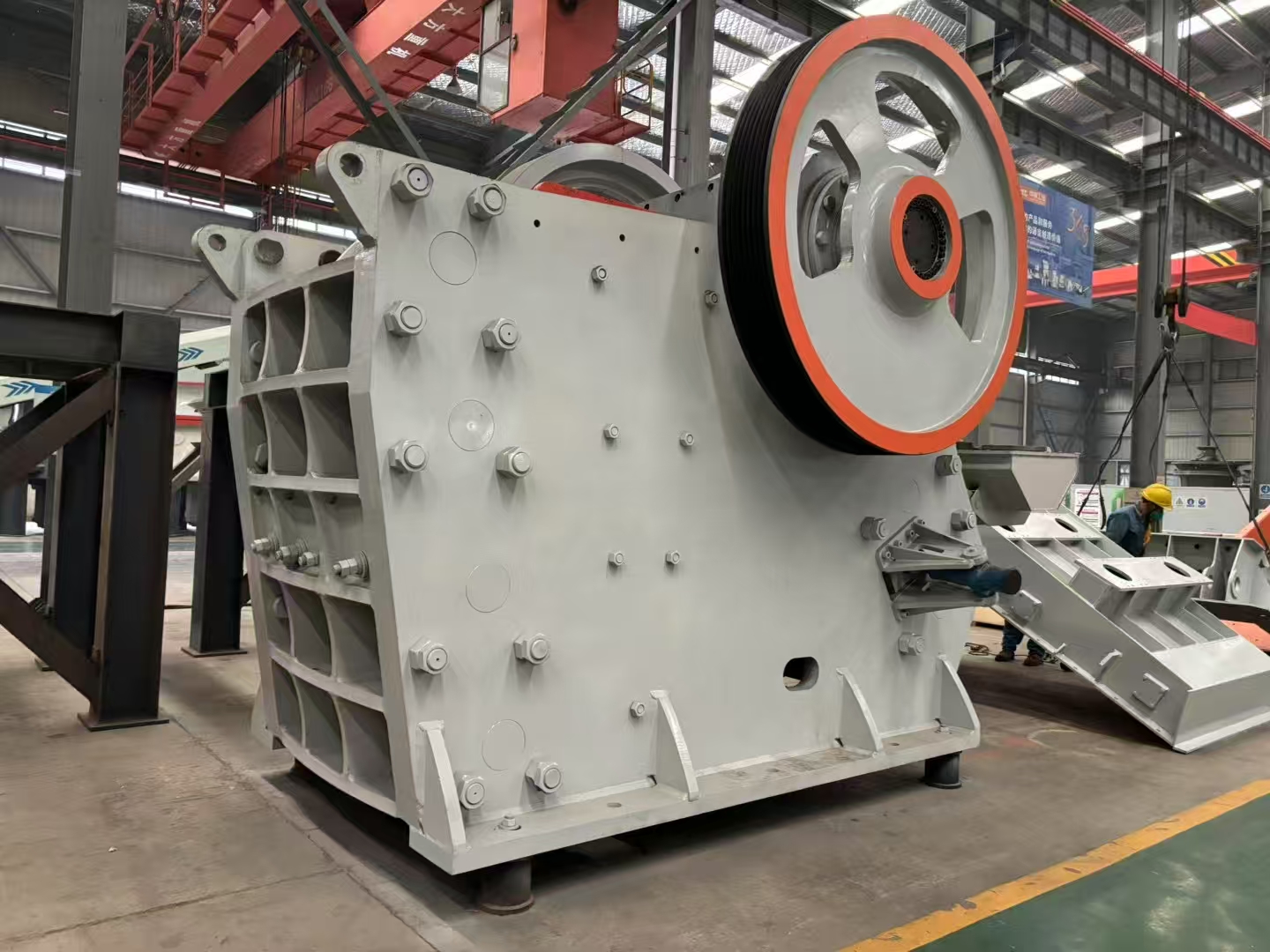

About of European Jaw Crusher

Jaw crusher is a common coarse crushing equipment, mainly used for crushing ores and rocks with high hardness. Its working principle is to squeeze and crush materials through the periodic movement of movable jaw and fixed jaw. With simple structure and easy maintenance, it is widely used in mining, building materials, metallurgy and other fields.It is characterized by high strength, reliability, durability and strong crushing force. It is characterized by large crushing size and high output. It is often used as primary crusher in various stone and ore crushing production lines.

Product Advantage

　　1. Moving Jaw Guard Design: A heavy-duty guard plate is installed above the moving jaw to prevent strong impact from materials and effectively protect the moving jaw body and its internal bearings from damage.

　　2. Integral Bearing Seat: The integral cast steel bearing seat ensures a seamless fit with the frame, eliminating unnecessary radial loads on the bearing during tightening, unlike modular bearing seats, ensuring smoother bearing　operation.

　　3. Convenient and Fast Particle Size Adjustment: The JC series jaw crushers utilize mechanical or hydraulic discharge adjustment mechanisms. The dual wedge adjustment method is simpler, safer, and faster than shim adjustment, reducing downtime.

　　4. Integrated Motor Mounting: The integrated motor mount and crusher frame not only save space and reduce V-belt length, but also extends the life of the V-belt due to the synchronized movement of the frame, mot mount, and motor, and the adjustable motor mount allows for adjustable V-belt tension.

　　5. Vibration-Isolating Mounting: The crusher is secured with a dedicated rubber damper, effectively absorbing vibration peaks while allowing vertical and longitudinal movement of the crusher, thereby reducing impact on thefoundation.

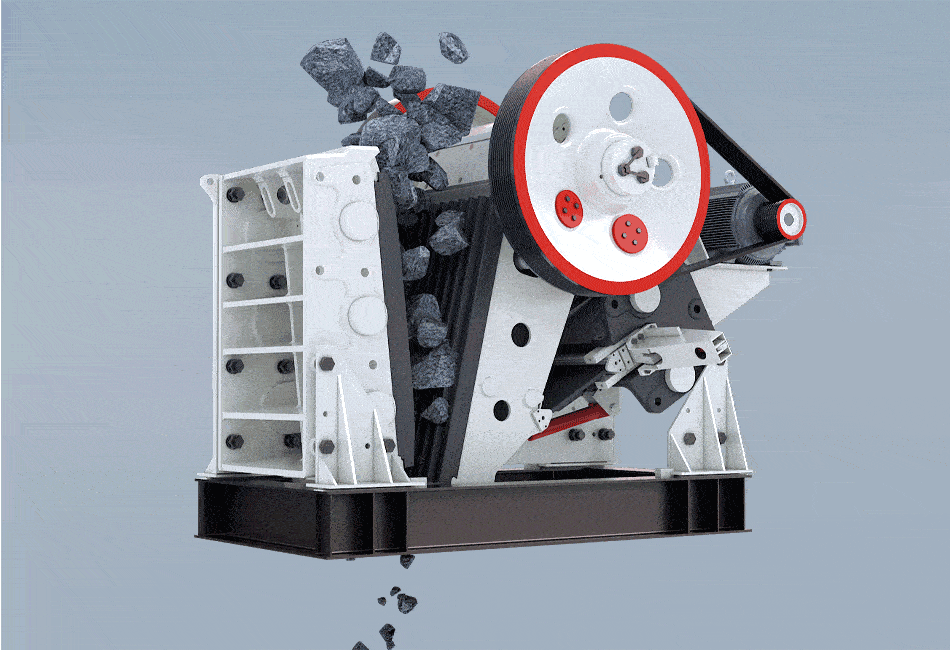

How is works

The working mode of the European version jaw crusher is the bending extrusion type. Its working principle is: the motor drives the belt and pulley to make the movable jaw move up and down through the eccentric shaft. When the movable jaw rises, the included angle between the elbow plate and the movable jaw becomes larger, so as to push the movable jaw plate close to the fixed jaw plate. At the same time, the materials are crushed or split to achieve the purpose of crushing; When the movable jaw descends, the included angle between the elbow plate and the movable jaw becomes smaller, and the movable jaw plate leaves the fixed jaw plate under the action of the pull rod and spring. At this time, the crushed materials are discharged from the lower opening of the crushing chamber. With the continuous rotation of the motor, the crusher jaw makes periodic movement to crush and discharge materials, so as to realize mass production.

Product Specifications

*Note: Technical data are subject to change without prior notice.

Model	Feeder Opening Size(mm)	Max. Feeding Size (mm)	Outlet adjusting range(mm)	Centrifugal Shaft Speed(rmp)	Capacity (t/h)	Motor Power (kw)
C80	500×750	400	40-150	290	50-160	55
C90	610×910	500	60-180	260	60-180	75
C100	760×1060	600	70-200	260	150-300	110
C110	850×1100	700	70-200	230	200-400	132
C125	950×1250	800	100-250	220	300-800	160
C140	1070×1400	900	125-270	220	400-900	200
C160	1200×1600	1000	150-300	220	500-1200	250
C200	1500×2000	1200	175-300	200	800-1400	400
