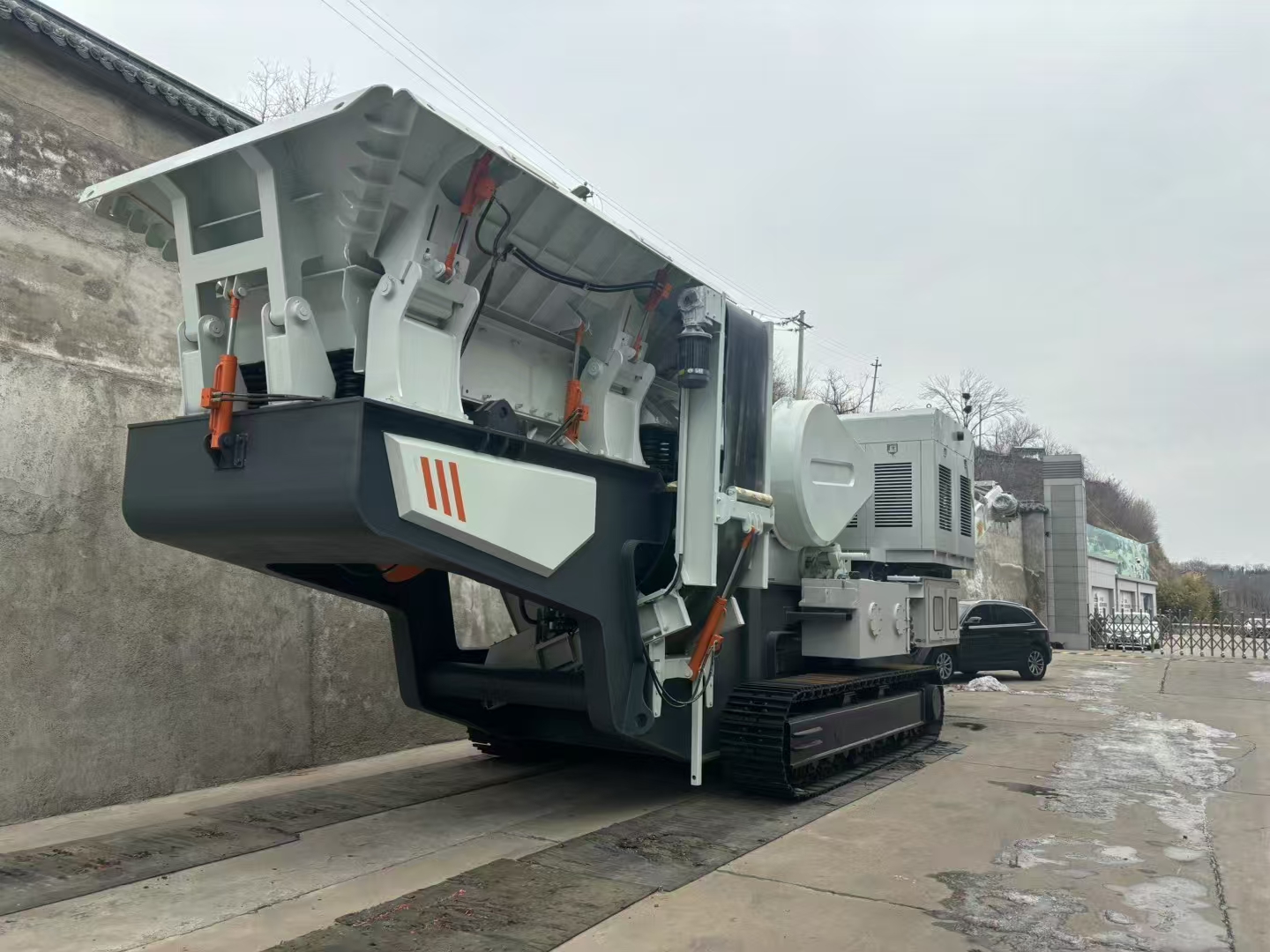

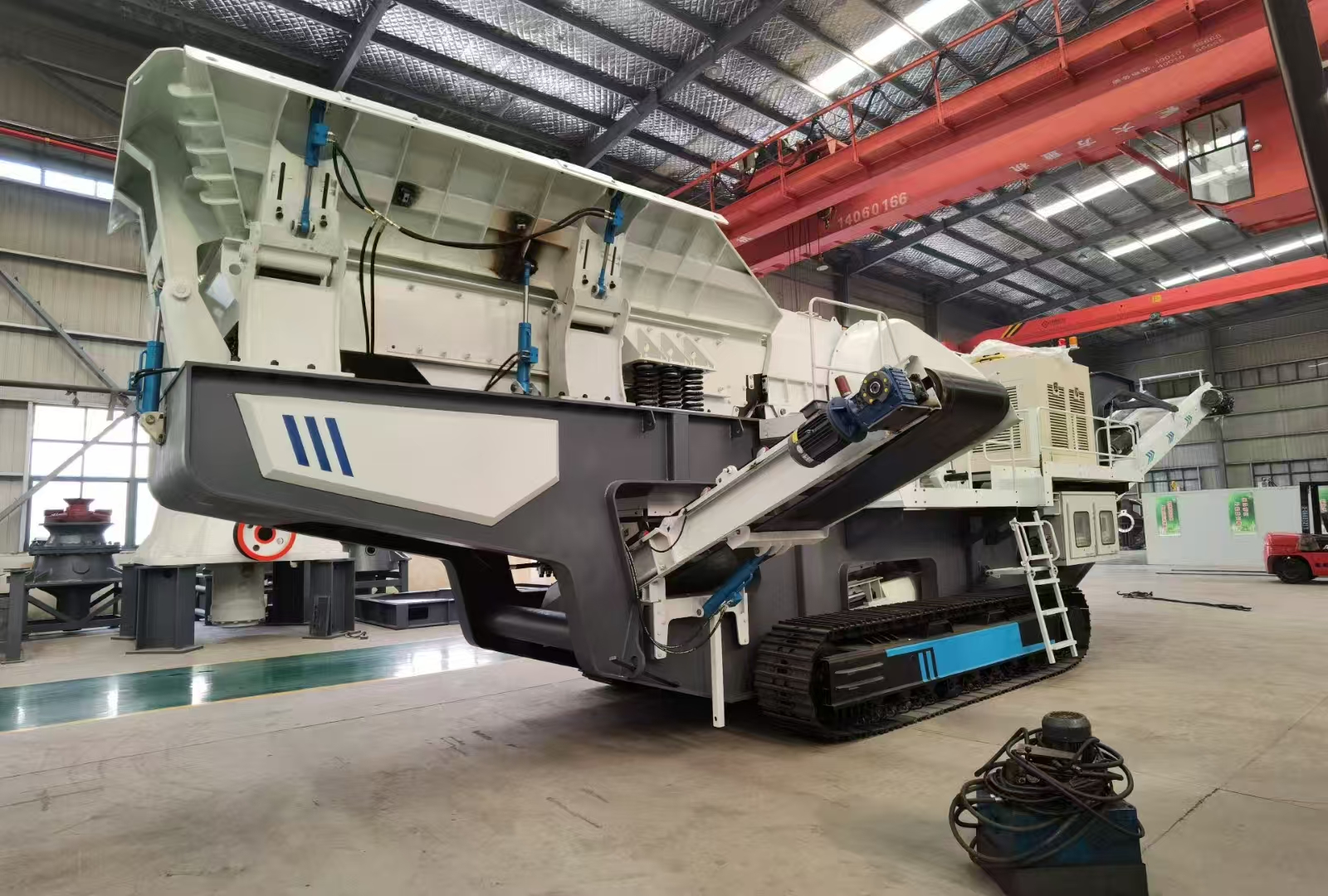

Crawler mobile crushing station

Employing advanced hydraulic drive, it can quickly realize operations such as belt lifting and discharge port adjustment; equipped with a user-friendly control panel, it not only provides users with more flexible solutions for production, but also has powerful fault diagnosis functions, effectively reducing equipment maintenance time.

　　Production Capacity: 63-445 t/h
　　Feed Size: ≤400mm
　　Discharge Port Size: ≤45mm
　　Applicable Materials: Construction Waste, Iron Ore, Calcite, River Pebbles, Granite, Limestone, River Rock, Aluminum Ore, Slag, etc.

WhatsApp Email inquiry

Product Description Product Advantages Working Principle Product Features

About of Crawler mobile crushing station

Crawler type hydraulic driving mobile crusher is the mobile crushing and screening equipment with full hydraulic driving crawler vehicle chassis to meet the market demand. The crawler mobile crusher is mainly used for the processing of materials that often need to be relocated, such as metallurgy, chemical industry, building materials, hydropower and so on, especially for the operation of mobile stones such as expressways, railways, hydropower projects, etc. users can adopt various configuration forms according to the type, scale and requirements of processed raw materials.

Product Advantage

1. The power system with sufficient power, reliable performance and excellent performance adopts Cummins diesel engine with low fuel consumption, low noise and reliable performance, providing a reliable, economic and environmental protection power source. The engine can be equipped with military low-temperature preheating start-up device, so that the equipment can be easily started in - 25C ° low-temperature environment.

2. The ship type structure has strong adaptability, all steel ship structure chassis has the characteristics of high strength, low grounding pressure, and has good adaptability to mountain and wetland.

3. Large driving force, strong torque, torque travel motor, large driving force and high reliability. The walking system adopts full power variable open hydraulic system with excellent performance and high reliability. It can make full use of the power of the engine. The main hydraulic components (pumps, valves, etc.) are imported from Japan to provide reliable power guarantee for the walking system.

4. Stepless variable speed travel imported servo pilot operation system, easy to operate, accurate control, can realize stepless variable speed travel.

5. Mature crushing equipment crushing and screening equipment are the mature products independently produced by the company, with compact structure, stable performance and reliability.

6. Hybrid energy device, hybrid pressure energy device and dual power intelligent transfer switch can be selected, which can make full use of local power resources, save operation cost and reduce CO2 and NOx emissions. In case of power interruption or under voltage, the diesel generator will be automatically switched to generate electricity to ensure the continuous operation of the equipment.

How is works

　　The materials are evenly transported to crawler type hydraulic driving crushing station by bucket elevator through feeder. After preliminary crushing by crusher, the closed-circuit system is composed of circular vibrating screen to realize the circulation crushing of materials. The materials meeting the requirements of particle size are exported by the conveyor to achieve the production purpose. According to the actual production requirements, the circular vibrating screen can be removed, and the material can be preliminarily crushed, and then operated with other crushing equipment.

Product Specifications

*Note: Technical data are subject to change without prior notice.

Model		YMC80	YMC96	YMC106	YMC116	YMC120
Feeder	Model	GZD8035	GZD9638	GZD1142	GZD1142	GZD1242
	Feeding Capacity	60-120t/h	100-200t/h	200-300t/h	200-300t/h	300-400t/h
	Feeding Height	2900mm	3750mm	3900mm	3900mm	3900mm
	Volume	2.2m³	3.2m³	3.2m³	3.2m³	3.2m³
	Power	2×3.7Kw	2×5.5Kw	2×5.5Kw	2×5.5Kw	2×7.5Kw
Jaw Crusher	Model	C80	C96	C106	C116	C120
	Power	55Kw	90Kw	132Kw	132Kw	160Kw
	Discharge Adjustment	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic
Main Discharge Belt	Size(Width x Length)	800×9000mm	1000×12000mm	1000×12000mm	1200×13000mm	1200×13000mm
	Unloading Height	2400mm	2900mm	2900mm	3200mm	3200mm
	Power	7.5Kw	11Kw	11Kw	15Kw	15Kw
Side Discharge Belt	Size(Width x Length)	500×3800mm	500×3800mm	500×3800mm	500×3800mm	500×3800mm
	Unloading Height	1800mm	1800mm	1800mm	1800mm	1800mm
	Power	3Kw	3Kw	3Kw	3Kw	3Kw
Iron Remover	Model	RCYD800	RCYD1000	RCYD1000	RCYD1200	RCYD1200
Generator	Primary Power	163Kw	225Kw	310Kw	310Kw	403Kw
	Standby Power	180Kw	250Kw	345Kw	345Kw	448Kw
	Structure	6-Cylinder Inline	6-Cylinder V-shape	6-Cylinder V-shape	6-Cylinder V-shape	8-Cylinder V-shape
Generator	Primary Power	150Kw	200Kw	280Kw	280Kw	360Kw
Generator	Standby Power	165Kw	220Kw	300Kw	300Kw	390Kw
Dual Power	Driving Concept	Diesel-electric Drive	Diesel-electric Drive	Diesel-electric Drive	Diesel-electric Drive	Diesel-electric Drive
Transport Parameters	Transport Length	12500mm	14500mm	15000mm	15000mm	15500mm
	Transport Width	2850mm	2950mm	3000mm	3200mm	3200mm
	Transport Height	3550mm	3550mm	3600mm	3600mm	3700mm
Installed Power		78.1Kw+70Kw	121Kw+70Kw	163Kw+90Kw	168Kw+115Kw	200Kw+115Kw
Complete Dry Fog Dust Suppression		Optional	Optional	Optional	Optional	Optional
Capacity		80-125t/h	100-250t/h	160-360t/h	200-450t/h	300-520t/h

FAQ

Crawler mobile crushing station

Related Products

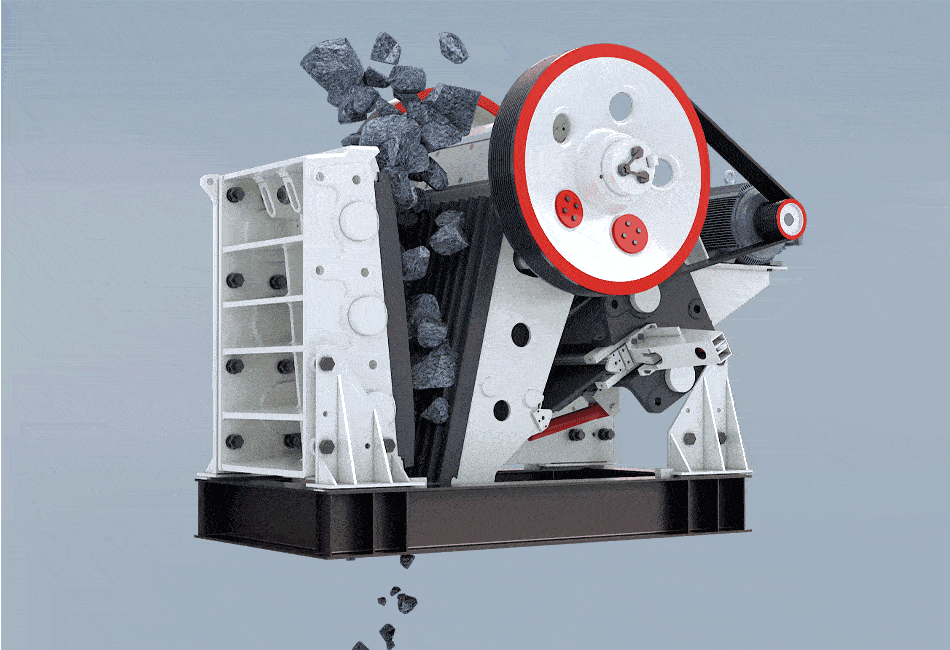

Jaw Crusher
